Chapter 15· 9 min read · illustrated

TCP — The Reliable Backbone

Connection-oriented delivery, the 3-way handshake, and the graceful close

TCP is the workhorse of the internet — HTTP, email, and most APIs ride on it. Where UDP shrugs at lost data, TCP guarantees your bytes arrive, complete and in order. It buys that reliability by first setting up a connection.

Interactive — the TCP handshake, live

animated figure

A sequence diagram that actually runs: handshake, data, graceful close — with connection states on both sides. Drop a packet and watch TCP recover.

Client CLOSED, server LISTEN — nothing has happened yet. The client speaks first.

Network

What is TCP?

TCP (Transmission Control Protocol) provides reliable, ordered, error-checked delivery of a stream of bytes between two applications. If something is lost, TCP resends it; if things arrive out of order, TCP reorders them. Its data unit is the segment.

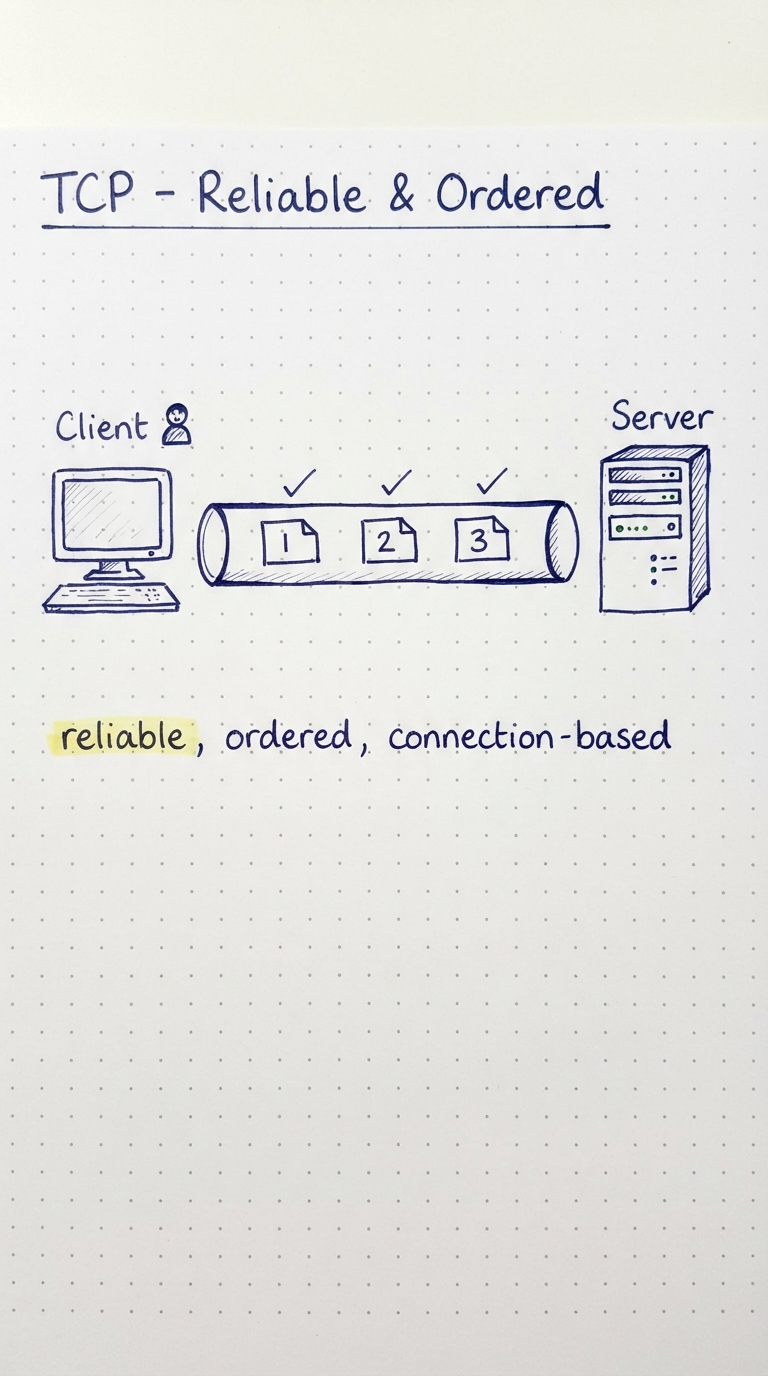

Client and server joined by a pipe; packets 1,2,3 arrive in order with ticks. — Tap to enlarge

Connection-oriented

Unlike UDP, TCP is connection-oriented: before any data is sent, both sides establish a connection and agree on starting parameters. Only then does data flow. This setup is what makes tracking and reliability possible.

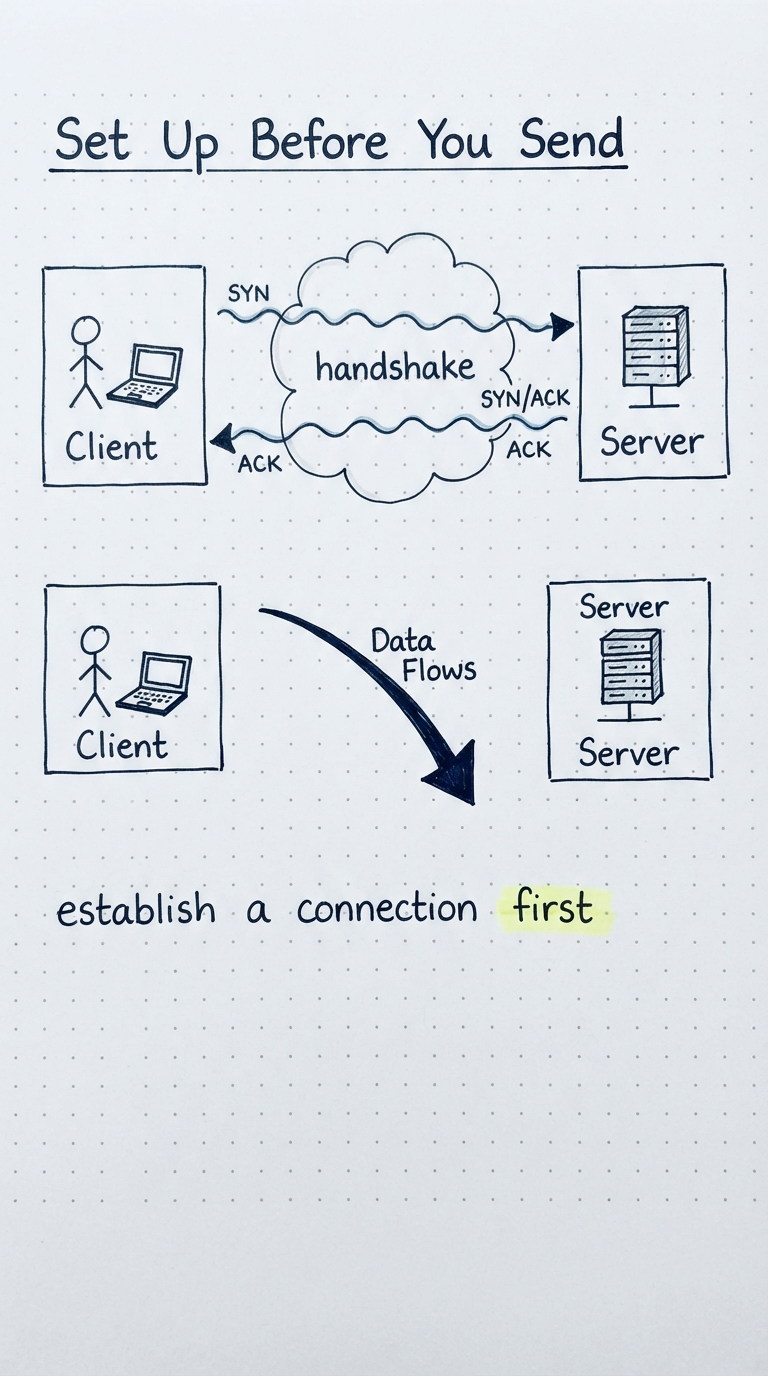

A handshake happens first, then data flows. — Tap to enlarge

The 3-way handshake

Connections open with a three-way handshake:

1. SYN: Client → Server: "I want to talk, my starting sequence number is x."
2. SYN-ACK: Server → Client: "OK, my starting number is y, and I acknowledge x."
3. ACK: Client → Server: "I acknowledge y." Connection established.

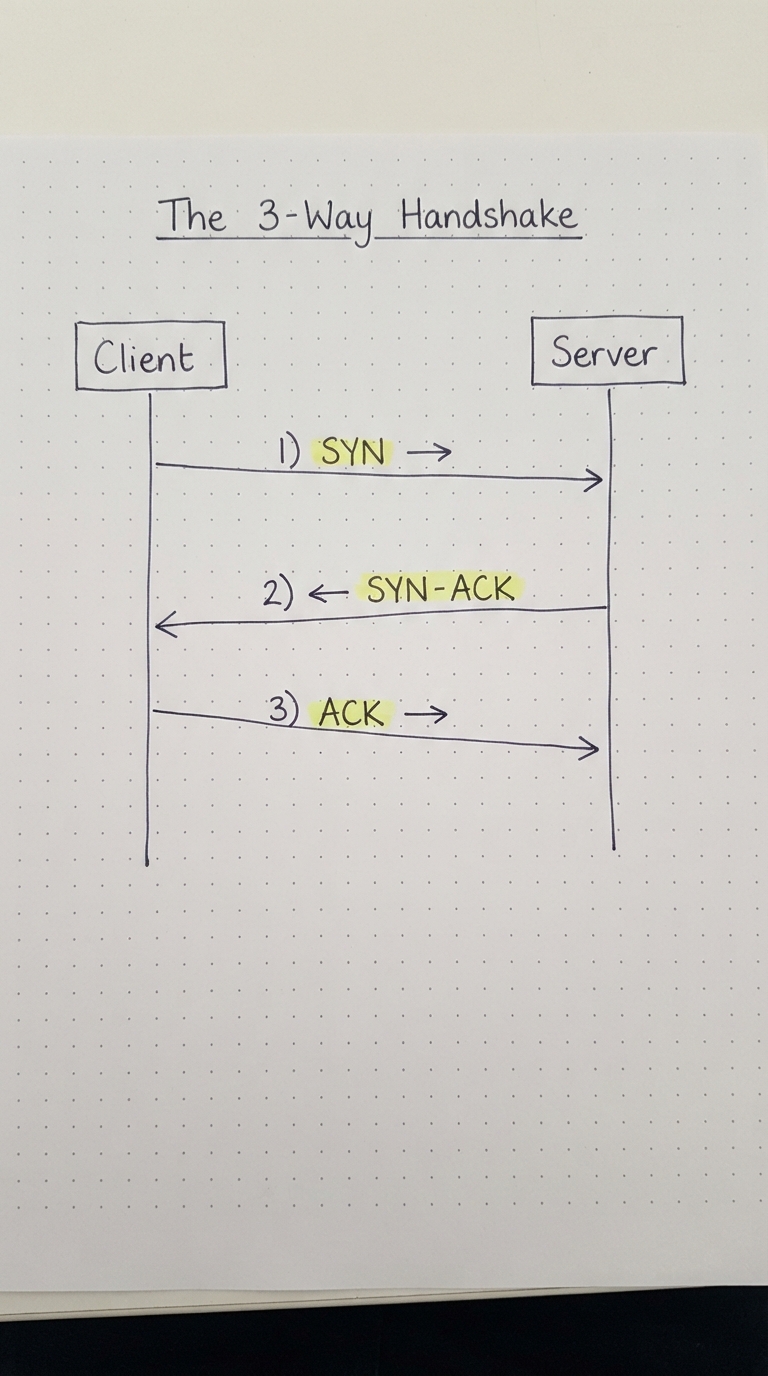

Sequence diagram: SYN, SYN-ACK, ACK between client and server. — Tap to enlarge

Why three steps?

Three messages are the minimum for both sides to confirm they can each send and receive. The client learns the server hears it; the server learns the client hears it back. Two messages would leave one direction unconfirmed.

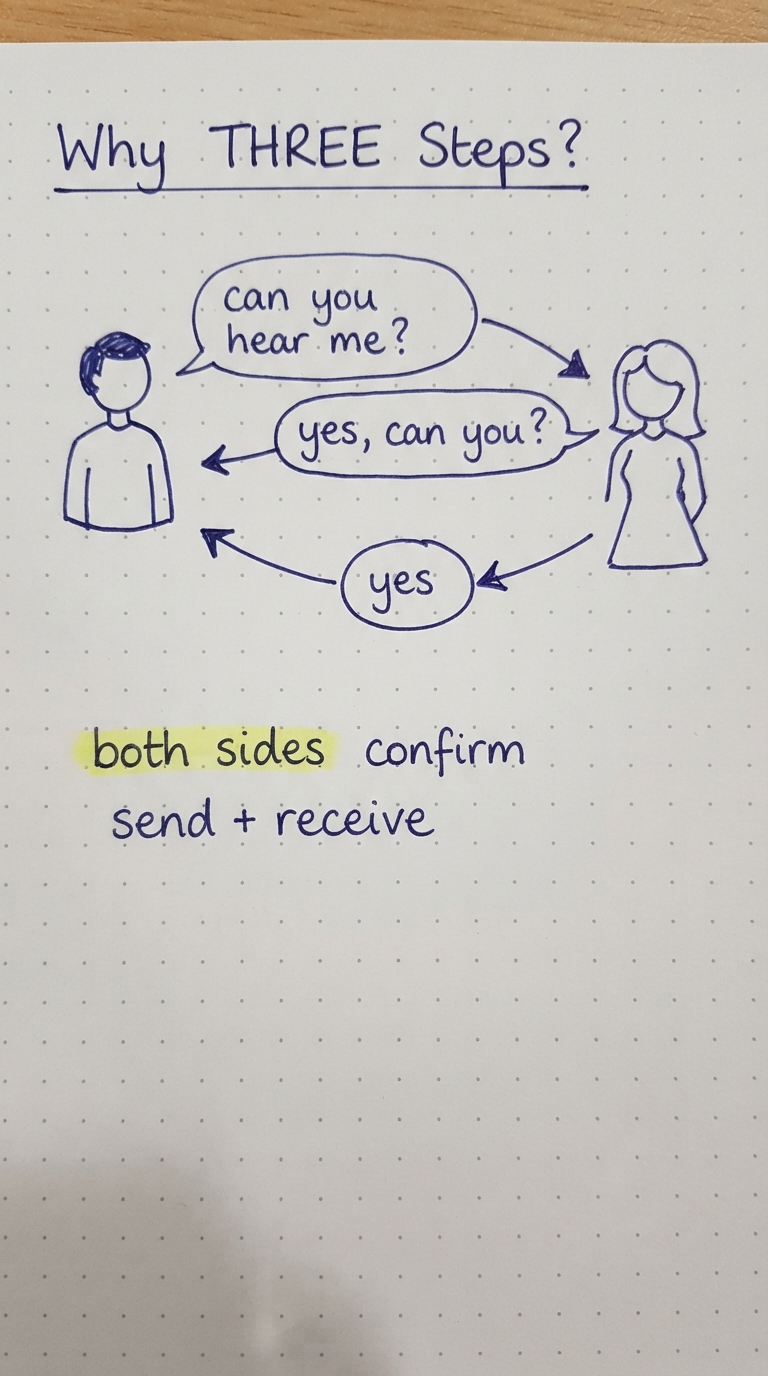

Two people each confirming they can both hear and speak. — Tap to enlarge

Closing the connection

Closing is a four-way exchange because each side shuts down its own direction independently: one side sends FIN, the other ACKs it; then the other side sends its own FIN, which gets ACKed. This lets data still flow one way while the other way is already closed.

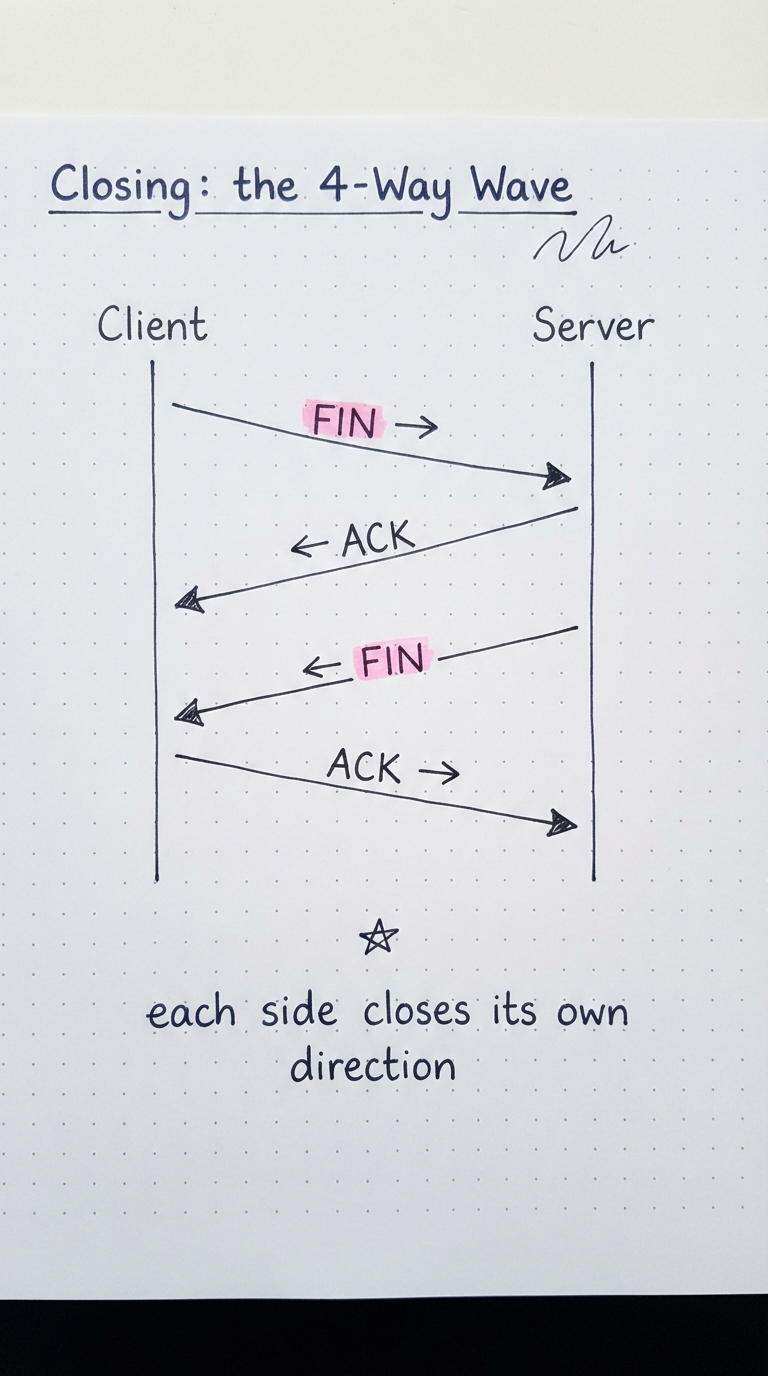

FIN, ACK, FIN, ACK four-way close. — Tap to enlarge

What TCP gives you

Reliable: Lost segments are detected and retransmitted.
In-order: Sequence numbers reassemble the stream correctly.
Flow control: Never overwhelms a slow receiver.
Congestion control: Backs off when the network is busy.

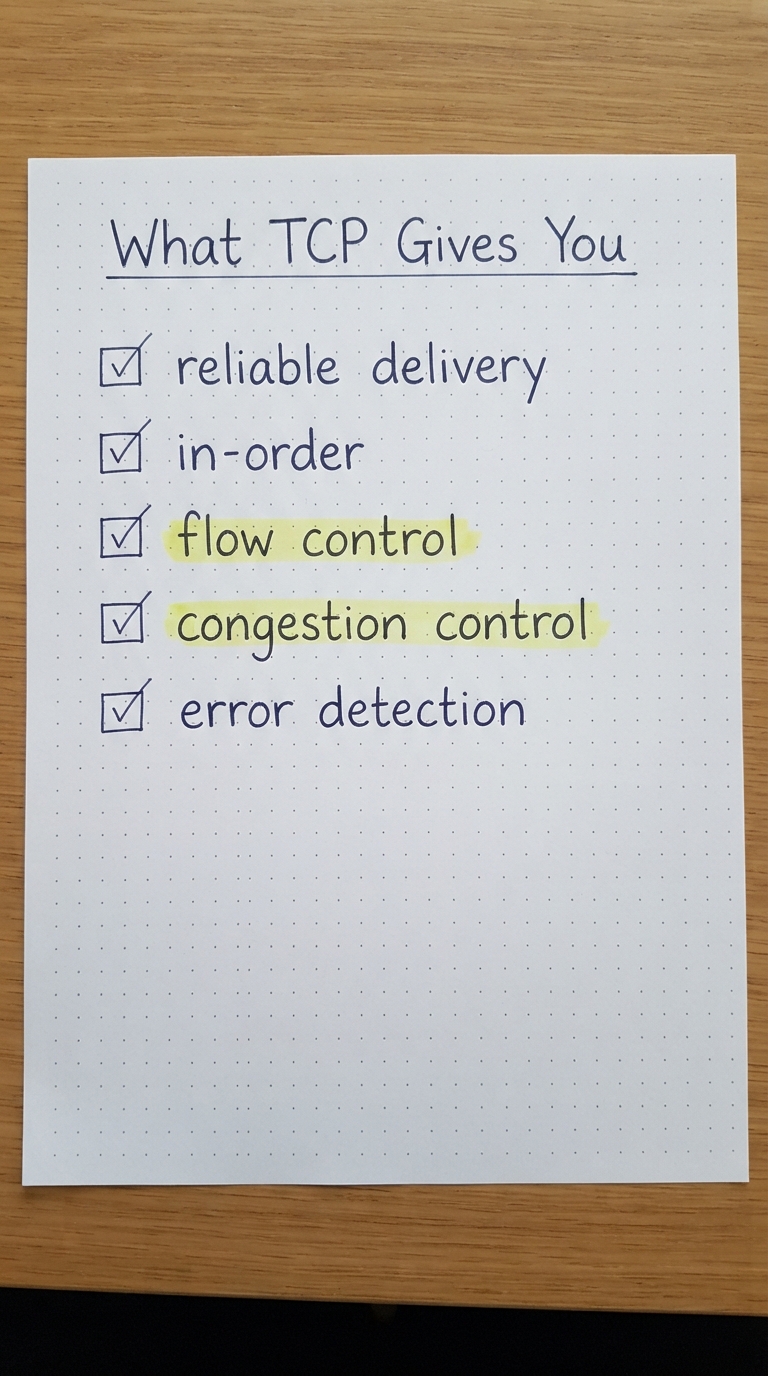

Checklist: reliable, in-order, flow control, congestion control, error detection. — Tap to enlarge

Connection states

A TCP connection moves through named states — LISTEN, SYN-SENT, ESTABLISHED, FIN-WAIT, CLOSED, and more. You will see these in tools like netstat and ss when debugging. ESTABLISHED is the healthy, data-flowing state.

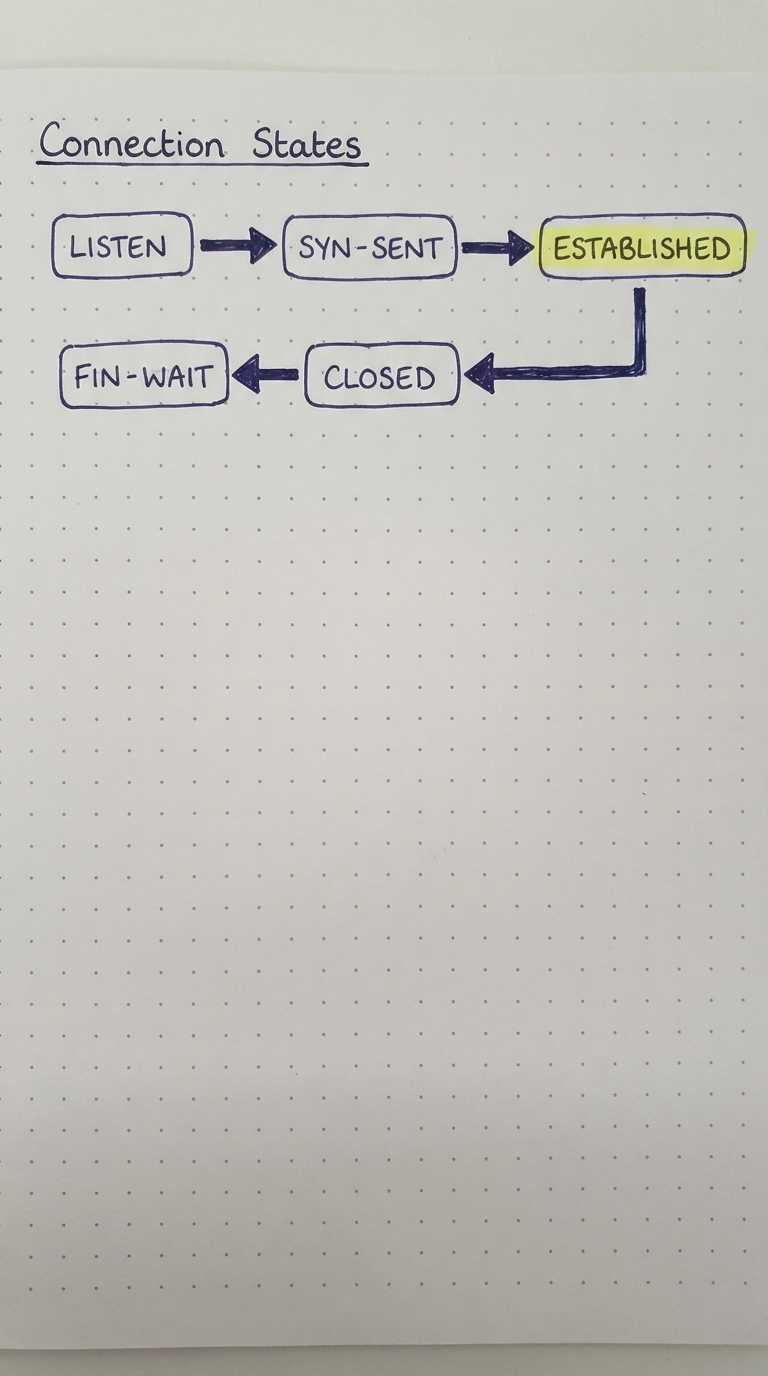

State flow: LISTEN, SYN-SENT, ESTABLISHED, FIN-WAIT, CLOSED. — Tap to enlarge
